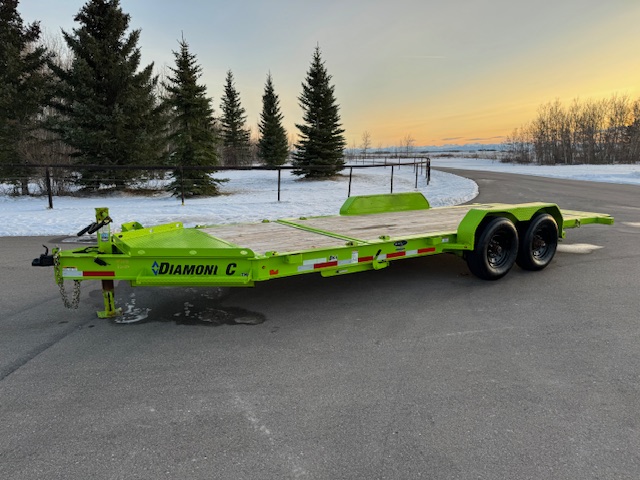

2022 Diamond C/Roadclipper HDT 82″x20’Low Profile Hydraulically Dampened!  HD V-TONGUE BOX! 14 PLY TIRES!

$12,995 plus GST

STANDARD FEATURES:

– GVWR: 14 900 lbs

– Dry Weight: 3 770 lbs

– Payload:11 130 lbs

– Tandem 7 000 lb Lippert Spring Axles with Electric Brakes

– Tilt: Hydraulic Dampening Cylinder with Valve Control (when released, the tilt bed rises to the loading position. When loaded it descends slowly with the weight of the load)

– ST235/80R16 Radial Tires on 16” Wheels

– 2-5/16” – 21,000 lb Demco EZ-Latch Adjustable & 7-way plug

– Cross-members: 3” I-Beam on 16” Centers

– Deck: 20’ in total (4’ at the front of trailer is stationary, remaining 16’ tilts)

– Fenders: Bolt-on 14-gauge Teardrop Diamond Plate

– Floor: 2” Treated Wood flooring

– Tongue & Frame: 8”x 10 lb I-Beam Tongue/Frame Design

– 12 000 lb Drop-Leg Jack

– All LED lights

– 110V Battery with 1.5amp built in charger

– Paint: DM Powder Coating Systems

– HD V-Tongue Box

– 6 Stake Pockets
